Product Name: Oropharyngeal Airway Guedel Berman Type, Beveled Nasal
Nasopharyngeal parichnos air passage with Trumpet thickened slidable pattern
Specification:
Oropharyngeal Airway Guedel Type
|
Cat. No. |
Size |
Mark |
Color |
Box(pcs) |
|
201 04 00 2 |
40mm/000# |
Newborn |
Pink |
50 |
|
201 05 00 2 |
50mm/00# |
Infant |
Blue |
50 |
|
201 06 00 2 |
60mm/0# |
Small Child |
Black |
50 |
|
201 07 00 2 |
70mm/1# |
Child |
White |
50 |
|
201 08 00 2 |
80mm/2# |
Small Adult |
Green |
50 |
|
201 09 00 2 |
90mm/3# |
Med. Adult |
Yellow |
50 |
|
201 10 00 2 |
100mm/4# |
Large Adult |
Red |
50 |
|
201 11 00 2 |
110mm/5# |
X-large Adult |
Orange |
50 |
|
201 12 00 2 |
120mm/6# |
2X-large Adult |
Purple |
50 |
Oropharyngeal Airway Berman Type
|
Cat. No. |
Size |
Mark |
Box(pcs) |
|
202 04 00 2 |
40mm |
Newborn |
50 |
|
202 05 00 2 |
50mm |
Infant |
50 |
|
202 06 00 2 |
60mm |
Small Child |
50 |
|
202 07 00 2 |
70mm |
Child |
50 |
|
202 08 00 2 |
80mm |
Small Adult |
50 |
|
202 09 00 2 |
90mm |
Med. Adult |
50 |
|
202 10 00 2 |
100mm |
Large Adult |
50 |
|
202 11 00 2 |
110mm |
X-large Adult |
50 |
Nasopharyngeal Airway
|
Cat. No. |
ID |
OD |
Length |
Box(pcs) |
|
203 30 00 2 |
3.0mm |
4.2mm |
72mm |
20 |
|
203 35 00 2 |
3.5mm |
4.9mm |
85mm |
20 |
|
203 40 00 2 |
4.0mm |
5.5mm |
105mm |
20 |
|
203 45 00 2 |
4.5mm |
6.2mm |
110mm |
20 |
|
203 50 00 2 |
5.0mm |
6.9mm |
115mm |
20 |
|
203 55 00 2 |
5.5mm |
7.5mm |
125mm |
20 |
|
203 60 00 2 |
6.0mm |
8.2mm |
135mm |
20 |
|
203 65 00 2 |
6.5mm |
8.8mm |
145mm |
20 |
|
203 70 00 2 |
7.0mm |
9.6mm |
150mm |
20 |
|
203 75 00 2 |
7.5mm |
10.2mm |
160mm |
20 |
|
203 80 00 2 |
8.0mm |
10.9mm |
175mm |
20 |
|
203 85 00 2 |
8.5mm |
11.5mm |
185mm |
20 |
|
203 90 00 2 |
9.0mm |
12.1mm |
190mm |
20 |
Feature:

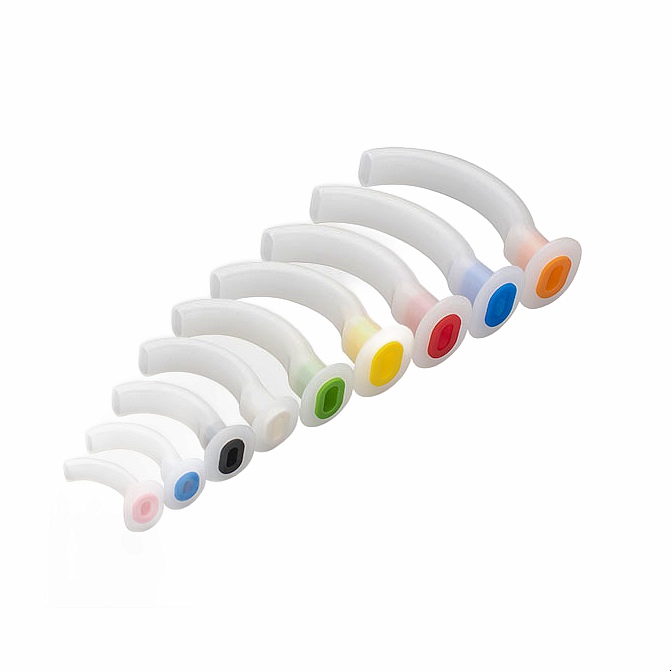

Oropharyngeal Airway
Guedel Type
-
Smooth integrated design for patient comfort and safety.
-
Color-coded bite block is designed for easy identification and to prevent biting down so that can avoid blocking airway.
-

-

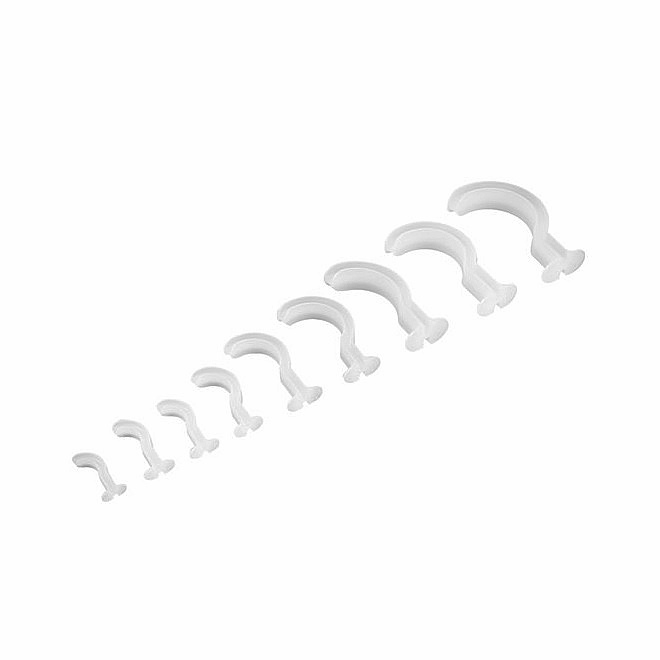

Oropharyngeal Airway
Berman Type
-
Atraumatic one piece design for patient comfort and safety.
-
Rigid bite block to ensure airway patency.
-
Two sides channel design provides passage of suction catheter to clear secretions and also provides space for oral care.

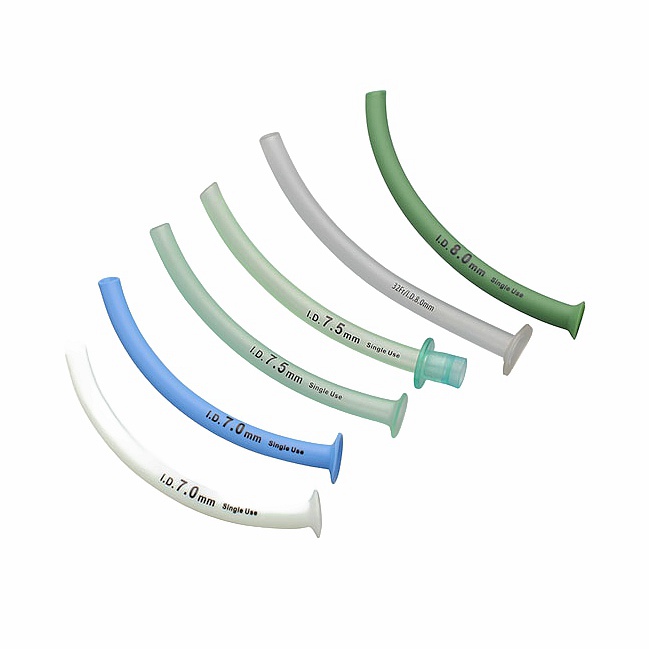

Nasopharyngeal Airway
Trumpet type
Trumpet flange can be with standard 15mm fitting.
Thickened type
Thickened flange and trumpet flange are designed to prevent tube slipping into the nasal airway.
Slidable type
Slidable rings are designed to adjust depth of the tube for comfort while also prevent tube from slipping the nasal airway beyond the desired depth.
-
|
